P. 42

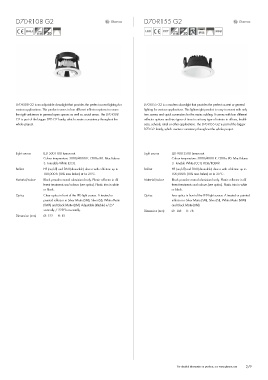

D70-R108 G2                                                      D70-R155 G2
























         D70-R108 G2 is an adjustable downlight that provides the perfect accent lighting for   D70-R155 G2 is a modern downlight that provides the perfect accent or general
         various applications. This product comes in four different reflector options to ensure   lighting for various applications. This lightweight product is easy to mount with only
         the right ambience in general open spaces as well as social areas. The D70-R108   two screws and quick connectors for the mains cabling. It comes with four different
         G2 is part of the bigger D70 G2 family, which creates consistency throughout the   reflector options and two types of trims to suit any type of interior in offices, health-
         whole project.                                                   care, schools, retail or other applications. The D70-R155 G2 is part of the bigger
                                                                          D70 G2 family, which creates consistency throughout the whole project.






         Light source  LED 500-1100 Lumen out.                            Light source  LED 900-3500 Lumen out.
                       Colour temperature: 3000/4000 K. CRI Ra 80. MacAdams             Colour temperature: 3000/4000 K. CRI Ra 80. MacAdams
                       3. Tuneable White (CCT).                                         3. Tunable White (CCT). RGB/RGBW.
         Ballast       HF (on/off) and DALI (dimmable) drivers with a lifetime up to  Ballast  HF (on/off) and DALI (dimmable) drivers with a lifetime up to
                       100,000 h (10% max failure) at Ta 25°C.                          100,000 h (10% max failure) at Ta 25°C..
         Material/colour  Black powder-coated aluminium body. Plastic reflector in dif-  Material/colour  Black powder-coated aluminium body. Plastic reflector in dif-
                       ferent treatments and colours (see optics). Plastic trim in white  ferent treatments and colours (see optics). Plastic trim in white
                       or black.                                                        or black.
         Optics        Clear optics in front of the LED light source. A treated or  Optics  Lens optics in front of the LED light source. A treated or painted
                       painted reflector in Silver Matte (SM), Silver (SI), White Matte  reflector in Silver Matte (SM), Silver (SI), White Matte (WM)
                       (WM) and Black Matte (BM). Adjustable (tiltable) +/-25°          and Black Matte (BM).
                       vertically / 228° horizontally.                    Dimension (mm)  Ø: 168   H: 78
         Dimension (mm)  Ø: 122   H: 81














































                                                                                           For detailed information on products, see www.glamox.com  2/9
