Page 39 - CATALOGUE-2024-Lux-&-Lumen-EN

D70-R108

The Glamox D70-R108 is a Tilt and Turn downlight. Glamox D70 is a downlight fam-
ily with state of the art LED technology. Our designers have focused on functionality
and efficient heat management that influence the lifetime of the product and provide
you with a long lasting and high quality solution. Tilt and Turn Adjustable downlight
with a diameter of 108 mm and with a 25° tilt and 110° turn. Well suited for use in

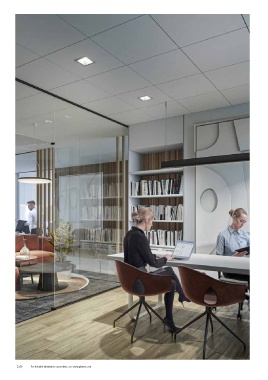

social areas, corridors, meeting rooms and other applications as a decorative effect
for illumination of walls. Scalable The design of D70-R108 is scalable in combination
with the rest of D70 family.

Light source LED 700 – LED 1400 Lumen Out
Light source information:
3000/4000 Kelvin, CRI 80, MacAdams 3.
Lifetime LED:
Up to 100.000h Ta25.
For precise technical information please see the data sheet on
item level. (Use on right side)
Ballast Fixed output (HF), DALI dimmable (100-1%) D70-R108 have
variants with DALI with Dim 2 Warm (D2W) light source have
dimming from 2700 – 1800 Kelvin. Driver life time up to
100,000 h/10 % (max failure) at Ta 25°C
Material/colour Reflector housing in die-cast aluminium, metallised PC reflector
and driver housing in polycarbonate. Housing and trim ring in
white or chrome finish
Optics Reflector can be delivered in (MB) Medium beam. Reflector
housing with possibilities for 25° tilt.
Dimension (mm) Ø: 122 H: 94
Ø: 122 L: 298 H: 94

2/6 For detailed information on products, see www.glamox.com
