D70-P D70-R

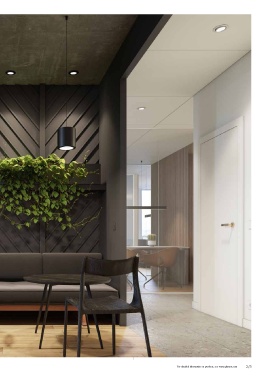

Glamox D70-P is a pendant downlight well suited for applications with high ceiling Glamox D70 is a downlight family with state of the art LED technology. High power
heights or for use in areas with slanted ceilings. This pendant version is a smart solu- LED demands a precise, ingenious and perfected product design. Our designers
tion based on our surface mounted downlight. Select your preferred size, D70-S155 have focused on functionality and efficient heat management that influence the
or D70-S195. Include the special accessories for suspension and add the cable lifetime of the product and provide you with a long lasting and high quality solution.
length required for your solution. The D70-P pendant solution contains of two item Versatile downlight The D70 family is applicable for several applications with its
numbers: 1. Select your preferred size of D70-S155 or D70-S195. 2. You need to selection of different heights of the component housing, reflectors and décor options.
add the accessories D70-S/P MNT. Freedom of planning D70 is prepared for easy and safe connections with Linect®
quick connection system.

Material/colour White painted steel with adapter for fixing the D70-S/P MNT Light source R92: LED 700 - 900 Lumen out
to the D70-S. RF155: LED 1100 - LED 1400 Lumen Out
R155: LED 1100 - LED 2100 Lumne Out
R195: LED 1400 - LED 3000 Lumen Out
Light source information:3000/4000 Kelvin, CRI 80, CRI 90
on request. R195 with CCT on request,
MacAdams 3.Lifetime LED:Up to 100.000h Ta25.
Ballast Fixed output (HF), DALI dimmable (100-1%) D70-R92 have
variants with DALI with Dim 2 Warm (D2W) light source have
dimming from 2700 – 1800 Kelvin. Driver life time up to
100,000 h/10 % (max failure) at Ta 25°C
Material/colour Reflector housing in die-casted aluminium, metallised PC reflec-
tor and driver housing in polycarbonate. Trimming in white or
chrome finish
Optics R155 / RF155 / R195: Reflector can be delivered in matt (SM)
or high gloss (SI) finish. For deliveries on request white (WH) or
black matt (BM) .
Dimension (mm) Ø: 92 H: 91
Ø: 168 H: 92
Ø: 168 L: 374 H: 92
Ø: 168 H: 126
Ø: 211 H: 144
Ø: 211 H: 139
Ø: 211 L: 405 H: 144
Ø: 211 H: 117
