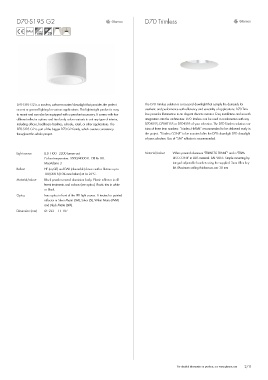

P. 44

D70-S195 G2                                                      D70 Trimless
























          D70-S195 G2 is a modern, surface-mounted downlight that provides the perfect   The D70 Trimless solution is a recessed downlight that comply the demands for
          accent or general lighting for various applications. This lightweight product is easy   aesthetic and performance with efficiency and versatility of applications. D70 Trim-
          to mount and can also be equipped with a pendant accessory. It comes with four   less provides illumination in an elegant discrete manner. Easy installation and smooth
          different reflector options and two body colour variants to suit any type of interior,   integrations into the architecture. D70 Trimless can be used in combination with any
          including offices, healthcare facilities, schools, retail, or other applications. The   D70-R155, D70-RF155 or D70-R195 of your selection. The D70 Trimless solution con-
          D70-S195 G2 is part of the bigger D70 G2 family, which creates consistency   tains of three item numbers: ”Trimless FRAME” recommended to be delivered early in
          throughout the whole project.                                    the project. ”Trimless CONE” to be mounted after the D70 downlight D70 downlight
                                                                           of your selection. Use of “SM” reflector is recommended.



          Light source  LED 1100 - 2200 Lumen out.                         Material/colour  White painted aluminum "TRIMLESS FRAME" and a "TRIM-
                        Colour temperature: 3000/4000 K. CRI Ra 80.                      LESS CONE" in ABS material. RAL 9016. Simple mounting by
                        MacAdams 3.                                                      integral adjustable brackets using the supplied 3mm Allen key
          Ballast       HF (on/off) and DALI (dimmable) drivers with a lifetime up to    bit. Maximum ceiling thicknesses are 30 mm
                        100,000 h (10% max failure) at Ta 25°C.
          Material/colour  Black powder-coated aluminium body. Plastic reflector in dif-
                        ferent treatments and colours (see optics). Plastic trim in white
                        or black.
          Optics        Lens optics in front of the LED light source. A treated or painted
                        reflector in Silver Matte (SM), Silver (SI), White Matte (WM)
                        and Black Matte (BM).
          Dimension (mm)  Ø: 222   H: 197
















































                                                                                           For detailed information on products, see www.glamox.com  2/11
