P. 54

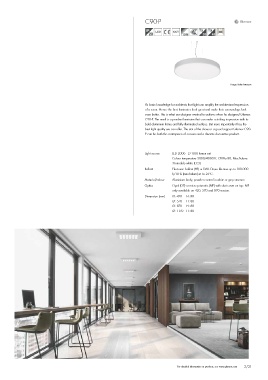

C85-S                                                            C90-P


















                                                     Design: Hans Bleken Rud                                          Design: Stefan Pettersson




         In later years we’ve seen a sharp rise in the use of luminaries with large illuminated   It’s basic knowledge for architects that light can amplify the architectural expression
         surfaces and a homogeneous light. Not a bad word about microprismatic optics   of a room. Hence the best luminaires look great and make their surroundings look
         and LED panels, we have a wide range of products in this category. But every once   even better. This is what our designer wanted to achieve when he designed Glamox
         in a while, you want something different. Variation. This is what we want to offer with   C90-P. The result is a pendent luminaire that can make a striking impression with its
         Glamox C85. The process of creating C85 hasn’t only revolved around designing a   bold aluminium frame and fully illuminated surface. But more importantly it has the
         luminaire that looks strikingly different, but also about designing the light that comes   best light quality we can offer. The star of the show or a good support Glamox C90-
         out of it. A modelling light that adds depths and dimensions to its surroundings.  P can be both the centrepiece of a room and a discrete decorative product.




         Light source  LED 3000 - 6000 lumen out                           Light source  LED 2000 - 27 000 lumen out
                       Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3             Colour temperature 3000/4000 K, CRI Ra 80, MacAdams
                       Tuneable white (CCT)"                                             3Tuneable white (CCT)
         Material/colour  Body in white painted steel. Plastic frame.      Ballast       Electronic ballast (HF) or DALI. Driver life time up to 100.000
         Optics        36pcs of small reflectors, silver matt (SM)                       h/10 % (max failure) at Ta 25°C.
         Dimension (mm)  W: 574   L: 574   H: 56                           Material/colour  Aluminium body, powder coated in white or grey structure.
                                                                           Optics        Opal (OP) or micro prismatic (MP) with dust cover on top. MP
                                                                                         only available on 420, 570 and 870 version.
                                                                           Dimension (mm)  Ø: 420   H: 88
                                                                                         Ø: 570   H: 88
                                                                                         Ø: 870   H: 88
                                                                                         Ø: 1170  H: 88
















































                                                                                           For detailed information on products, see www.glamox.com  2/21
