Page 53 - CATALOGUE-2024-Lux-&-Lumen-EN
P. 53

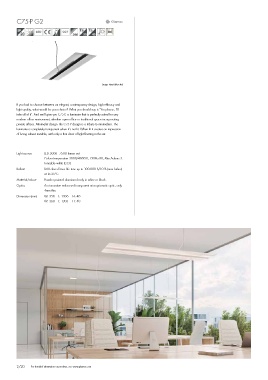

C75-P G2                                                         C85-R


















                                                     Design: Hans Bleken Rud                                          Design: Hans Bleken Rud




          If you had to choose between an elegant, contemporary design, high efficacy and   In later years we’ve seen a sharp rise in the use of luminaries with large illuminated
          light quality, what would be your choice? What you should say is “Yes please, I’ll   surfaces and a homogeneous light. Not a bad word about microprismatic optics
          take all of it”. And we’ll give you C75-P, a luminaire that is perfectly suited for any   and LED panels, we have a wide range of products in this category. But every once
          modern office environment, whether open office or traditional space incorporating   in a while, you want something different. Variation. This is what we want to offer with
          private offices. Minimalist design The C75-P design is a tribute to minimalism. The   Glamox C85. The process of creating C85 hasn’t only revolved around designing a
          luminaire is completely transparent when it’s not lit. When lit it creates an impression   luminaire that looks strikingly different, but also about designing the light that comes
          of being almost invisible, with only a thin sliver of light floating in the air.  out of it. A modelling light that adds depths and dimensions to its surroundings.




          Light source  LED 5000 - 7500 lumen out                          Light source  LED 3000 - 6000 lumen out
                        Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3.           Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
                        Tuneable white (CCT)                                             Tuneable white (CCT)
          Ballast       DALI driver.Driver life time up to 100.000 h/10 % (max failure)   Ballast  HF or DALI. Driver life time up to 100.000 h/10 % (max
                        at Ta 25°C.                                                      failure) at Ta 25°C.
          Material/colour  Powder painted aluminum body in white or black.  Material/colour  Body in white painted steel. Plastic frame.
          Optics        An innovative embossed transparent microprismatic optic, only   Optics  36pcs of small reflectors, silver matt (SM)
                        4mm thin.                                          Dimension (mm)  W: 597  L: 597   H: 52
          Dimension (mm)  W: 358  L: 1306   H: 40
                        W: 360  L: 1305   H: 40



















































         2/20    For detailed information on products, see www.glamox.com
