P. 72

Reed                                                             Sinus


















                                                     Design: Vesa Honkonen

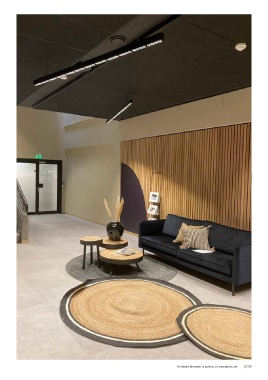

         This pendant luminaire has a remarkably slim and elegant shape, and an all-alumini-  Sinus is a series of shallow luminaires in a classic design which are suitable for most
         um finish with attractive details. Reed is available in black, white and silver grey. The   environments, such as corridors, receptions, exhibition areas, hotels, etc. Sinus can
         LED light source, in combination with a silver reflector and high quality micropris-  be used both as a ceiling and a wall luminaire. Sinus is offered in white or grey,
         matic optics makes Reed one of the most energy efficient pendant luminaires on the   with a diffuser of opal acrylic. It is available with compact fluorescent or LED light
         market today. Easy installation and continuous mounting Reed is also available for   source, dimming and an integrated emergency lighting unit. Sinus with sensor Sinus is
         continuous mounting on request. A discreet bracket allows for continuous mounting at   available with built-in presence detector in two different versions; ON/OFF operating
         flexible angles. It is delivered as a complete system with max 3 units in one system.  with standard electronic ballast and MIN/MAX operating with dimmable electronic
                                                                           ballast.



         Light source  LED 2700 - 8100 lumen out.Colour temperature 3000/4000   Light source  LED 1000 – 2500 lumen out
                       K, CRI Ra 80, MacAdams 3Tuneable white (CCT)                      Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
         Ballast       Electronic ballast (HF) or DALI.                    Ballast       Fixed output (HF), DALI dimmable (0-100%) Driver life time up
         Material/colour  White, silver grey or black aluminium body with end caps in    to 100.000 h/10 % (max failure) at Ta 25°C
                       die-cast aluminium.                                 Material/colour  White or grey aluminium body.
         Optics        High quality microprismatic diffuser MP in combination with   Optics  Opal acrylic diffuser (OP).
                       efficient silver reflectors.                        Dimension (mm)  Ø: 525   H: 115
         Dimension (mm)  W: 104  L: 1232   H: 64                                         Ø: 425   H: 93
                       W: 104  L: 1532   H: 64




















































                                                                                           For detailed information on products, see www.glamox.com  2/39
