Page 68 - CATALOGUE-2024-Lux-&-Lumen-EN

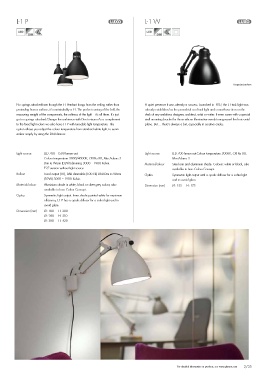

P. 68

L-1 P                                                            L-1 W


















                                                                                                                        Design: Jac Jacobsen




         No springs attachedEven though the L-1 Pendant hangs from the ceiling rather than   A quiet presence It was already a success. Launched in 1937, the L-1 task light was
         protruding from a surface, it’s unmistakably a L-1. The perfect curving of the bell, the   already established as the proverbial cool task light and a must-have item on the
         reassuring weight of the components, the softness of the light – it’s all there. It’s just   desk of any ambitious designer, architect, artist or writer. It even came with a special
         got no springs attached.Change the ambience with Dim to warm As a complement   wall mounting bracket for those whose illuminative needs transgressed the horizontal
         to the fixed light colors we also have L-1 P with tuneable light temperature. This   plane. But… There’s always a but, especially in creative circles.
         option allows you adjust the colour temperature from standard white light, to warm
         amber simply by using the DALI-dimmer.




         Light source  LED 700 - 1500 lumen out.                           Light source  LED 700 lumen out.Colour temperature 3000K, CRI Ra 80,
                       Colour temperature 3000/4000K, CRI Ra 80, MacAdams 3              MacAdams 3
                       Dim to Warm (D2W) dimming 3000 – 1900 Kelvin.       Material/colour  Steel arm and aluminium shade. Colours: white or black, also
                       E27 version without light source                                  available in Luxo Colour Consept.
         Ballast       Fixed output (HF), DALI dimmable (100-1%) DALI Dim to Warm   Optics  Symmetric light output with a opalic diffuser for a softer light
                       (D2W) 3000 – 1900 Kelvin.                                         and to avoid glare.
         Material/colour  Aluminium shade in white, black or silver grey colour, also   Dimension (mm)  Ø: 155   H: 175
                       available in Luxo Colour Consept.
         Optics        Symmetric light output. Inner shade painted white for maximum
                       efficiency. L-1 P has a opalic diffuser for a softer light and to
                       avoid glare.
         Dimension (mm)  Ø: 180   H: 200
                       Ø: 280   H: 310
                       Ø: 380   H: 420













































                                                                                           For detailed information on products, see www.glamox.com  2/35
   63   64   65   66   67   68   69   70   71   72   73
