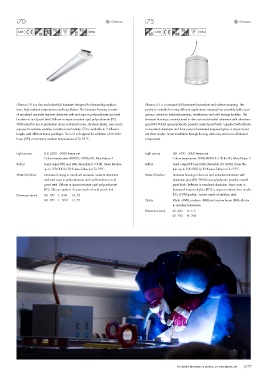

Page 110 - CATALOGUE-2024-Lux-&-Lumen-EN

i70 i75

Glamox i70 is a slim and robust LED luminaire designed for demanding applica- Glamox i75 is a compact LED luminaire for pendant and surface mounting. The
tions, high ambient temperatures and long lifetime. The luminaire housing is made product is suitable for many different applications ranging from assembly halls, open
of anodized seawater resistant aluminium with end caps in polycarbonate and end spaces, cinema to industrial premises, warehouses and cold storage facilities. The
brackets in acid proof steel. Diffuser in impact resistant opal polycarbonate (PC). luminaire housing is manufactured in die-cast and extruded aluminium with aluminium
Well suited for use in production areas, technical rooms, chemical plants, even areas grey (RAL 9006) epoxy/polyester powder coated paint finish. Supplied with reflector
exposed to extreme weather conditions and salinity. i70 is available in 2 different in anodised aluminium and front cover in laminated tempered glass or impact resist-
lengths with different lumen packages. The i70 is designed for a lifetime of 50.000 ant clear acrylic. Smart installation through the top, with easy access to all internal
hours (L70) at maximum ambient temperatures of Ta 55 ºC. components.

Light source LED 2200 - 6000 lumen out Light source LED 1700 - 5000 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3 Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
Ballast Fixed output (HF) and DALI dimmable (1-100%). Driver life time Ballast Fixed output (HF) and DALI dimmable (10-100%). Driver life
up to 120 000 h/10 % (max failure) at Ta 25°C. time up to 100 000 h/10 % (max failure) at Ta 25°C.
Material/colour Luminaire housing in anodized seawater resistant aluminium Material/colour Luminaire housing in die-cast and extruded aluminium with
with end caps in polycarbonate and end brackets in acid aluminium grey (RAL 9006) epoxy/polyester powder coated
proof steel. Diffuser in impact resistant opal polycarbonate paint finish. Reflector in anodised aluminium. Front cover in
(PC). Silicone gaskets. Screws made of acid proof steel. laminated tempered glass (LTG) or impact resistant clear acrylic
Dimension (mm) W: 170 L: 634 H: 73 (CL). EPDM gaskets. Screws made of stainless steel.
W: 170 L: 1194 H: 73 Optics Wide - (WB), medium - (MB) and narrow beam (NB) reflector
in anodised aluminium.
Dimension (mm) Ø: 250 H: 177
Ø: 250 H: 296

For detailed information on products, see www.glamox.com 2/77
