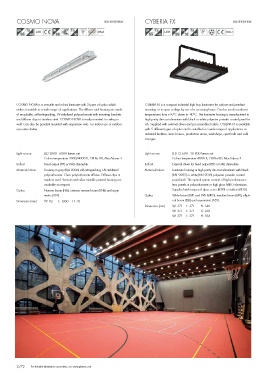

Page 105 - CATALOGUE-2024-Lux-&-Lumen-EN

COSMO NOVA CYBERIA FX

COSMO NOVA is a versatile and robust luminaire with 3 types of optics which CYBERIA FX is a compact industrial high bay luminaires for surface and pendant
makes it suitable in a wide range of applications. The diffuser and housing are made mounting or in open ceilings by use of a recessing frame. Can be used in ambient
of recyclable, self-extinguishing, UV-stabilized polycarbonate with mounting brackets temperatures from +50°C down to -40°C. The luminaire housing is manufactured in
and diffuser clips in stainless steel. COSMO NOVA is easily mounted to ceiling or high purity die-cast aluminium with black or white polyester powder coated paint fin-
wall. Can also be pendant mounted with suspension wire. For indoor use or outdoor ish. Supplied with external driver and pre-assembled cable. CYBERIA FX is available
use under shelter. with 5 different types of optics and is suitable for a wide range of applications as
industrial facilities, ware houses, production areas, workshops, sport halls and cold
storages.

Light source LED 3800 - 6000 lumen out Light source LED 12 600 - 30 800 lumen out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3 Colour temperature 4000 K, CRI Ra 80, MacAdams 3
Ballast Fixed output (HF) or DALI dimmable. Ballast External driver for fixed output (HF) or DALI dimmable.
Material/colour Housing in grey (RAL 9006) self-extinguishing, UV-stabilized Material/colour Luminaire housing in high purity die-cast aluminium with black
polycarbonate. Clear polycarbonate diffuser. Diffuser clips in (RAL 9005) or white (RAL 9016) polyester powder coated
stainless steel. Versions with silver metallic painted housing are paint finish. The optical system consists of high performance
available on request. lens panels in polycarbonate or high gloss MIRO aluminium.
Optics Narrow beam (NB), extreme narrow beam (XNB) and asym- Supplied with tempered glass cover (IK09) or without (IK10).
metric (ASY). Optics Wide beam (WB and WB MIRO), medium beam (MB), ellipti-
Dimension (mm) W: 82 L: 1060 H: 78 cal beam (ELB) and asymmetric (ASY).
Dimension (mm) W: 371 L: 371 H: 146
W: 371 L: 371 H: 250
W: 371 L: 371 H: 104

2/72 For detailed information on products, see www.glamox.com
