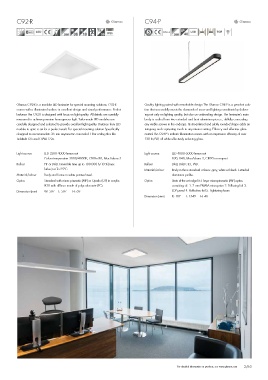

Page 96 - CATALOGUE-2024-Lux-&-Lumen-EN

C92-R C94-P

Glamox C92-R is a modular LED luminaire for special mounting solutions. C92-R Quality lighting paired with remarkable design The Glamox C94-P is a pendant solu-
comes with a illuminated surface in excellent design and visual performance. Perfect tion that successfully meets the demands of users and lighting consultants by deliver-
balance The C92-R is designed with focus on light quality. All details are carefully ing not only on lighting quality, but also on outstanding design. The luminaire’s main
measured to achieve premium homogenous light. Tailor-made LED modules are body is crafted from two extruded and bent aluminium pieces , skilfully concealing
carefully designed and selected to provide excellent light quality. Distance from LED any visible screws in the endcaps. Its streamlined and subtly rounded shape adds an
module to optic is set for a perfect result. For special mounting solution Specifically intriguing and captivating touch to any interior setting. Efficacy and effective glare
designed to accommodate 35 mm asymmetric concealed T Bar ceiling tiles like control The C94-P’s uniform illumination comes with an impressive efficacy of over
Troldtekt T35 and OWA S 9a. 130 lm/W, all while effectively reducing glare.

Light source LED 3200-4000 lumen out Light source LED 4000-6000 lumen out
Colour temperature 3000/4000K, CRI Ra 80, MacAdams 3 830, 840, MacAdams 3, CRI90 on request
Ballast HF or DALI. Driver life time up to 100.000 h/10 % (max Ballast DALI, DALI-CLO, WD.
failure) at Ta 25°C. Material/colour Body in three standard colours: grey, white or black. Extruded
Material/colour Body and frame in white painted steel. aluminium profile.
Optics Standard with micro prismatic (MP) or Opalic (OP) in acrylic. Optics State-of-the-art edge-lit 5 layer microprismatic (MP) optics
IK10 with diffusor made of polycarbonate (PC). consisting of: 1. 2 mm PMMA microprism 2. Diffusing foil 3.
Dimension (mm) W: 597 L: 597 H: 69 LGP panel 4. Reflective foil 5. Tightening foam
Dimension (mm) B: 107 L: 1349 H: 46

For detailed information on products, see www.glamox.com 2/63
