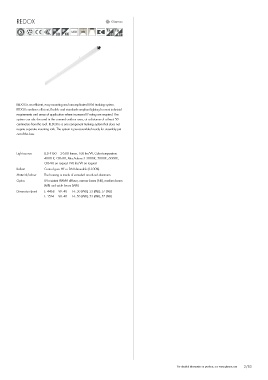

Page 116 - CATALOGUE-2024-Lux-&-Lumen-EN

REDOX

REDOX is an efficient, easy mounting and uncomplicated IP66 trunking system.
REDOX combines efficient, flexible and standard-compliant lighting for most industrial
requirements and areas of application where increased IP rating are required. The
system can also be used in the covered outdoor area, at a distance of at least 50
centimeters from the roof. REDOX is a one-component trunking system that does not
require separate mounting rails. The system is pre-assembled ready for assembly just
out of the box.

Light source LED 4160 – 37500 lumen, 160 lm/W, Color temperature
4000 K, CRI>80, MacAdams 3 3000K, 5000K, 6000K,
CRI>90 on request 190 lm/W on request
Ballast Control gear HF or DALI dimmable (1-100%).
Material/colour The housing is made of extruded anodized aluminum.
Optics UV-resistant PMMA diffuser, narrow beam (NB), medium beam
(MB) and wide beam (WB)
Dimension (mm) L: 4468 W: 40 H: 50 (WB); 53 (MB); 57 (NB)
L: 1524 W: 40 H: 50 (WB); 53 (MB); 57 (NB)

For detailed information on products, see www.glamox.com 2/83
